Clean room

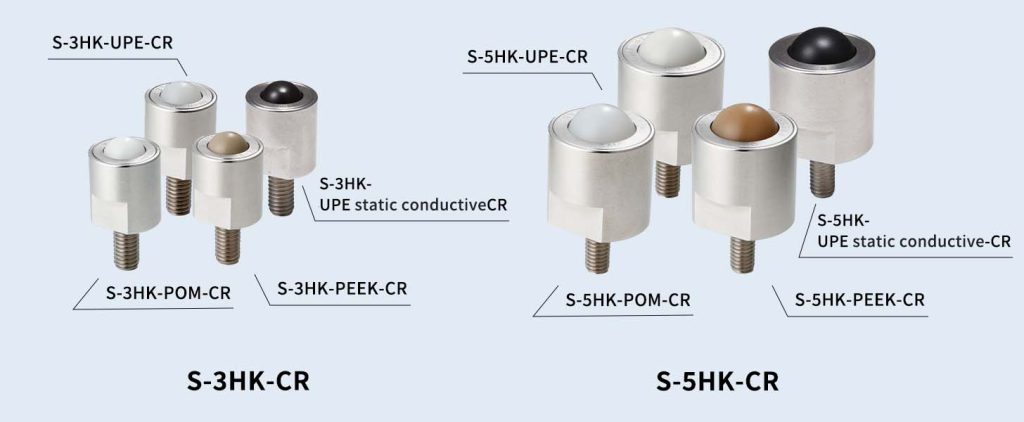

S-○HK series

S-○HK series

(Unit:mm)

ModelRecommended loadMain ballBody・Small ballHLL1DMabdData
Download
(DXF/PDF)
S-3HK-POM-CR1kgPOMSUS30420123φ16M68133/8″ Ball(φ9.525)DXFPDF
S-3HK-PEEK-CRPEEKPDF
S-3HK-UPE-CRUPEPDF
S-3HK-UPE static conductive-CRUPE static conductivePDF
S-5HK-POM-CR2kgPOM28135φ24M69195/8″ Ball(φ15.875)DXFPDF
S-5HK-PEEK-CRPEEKPDF
S-5HK-UPE-CRUPEPDF
S-5HK-UPE static conductive-CRUPE static conductivePDF

※For materials not contained herein, please contact us.
