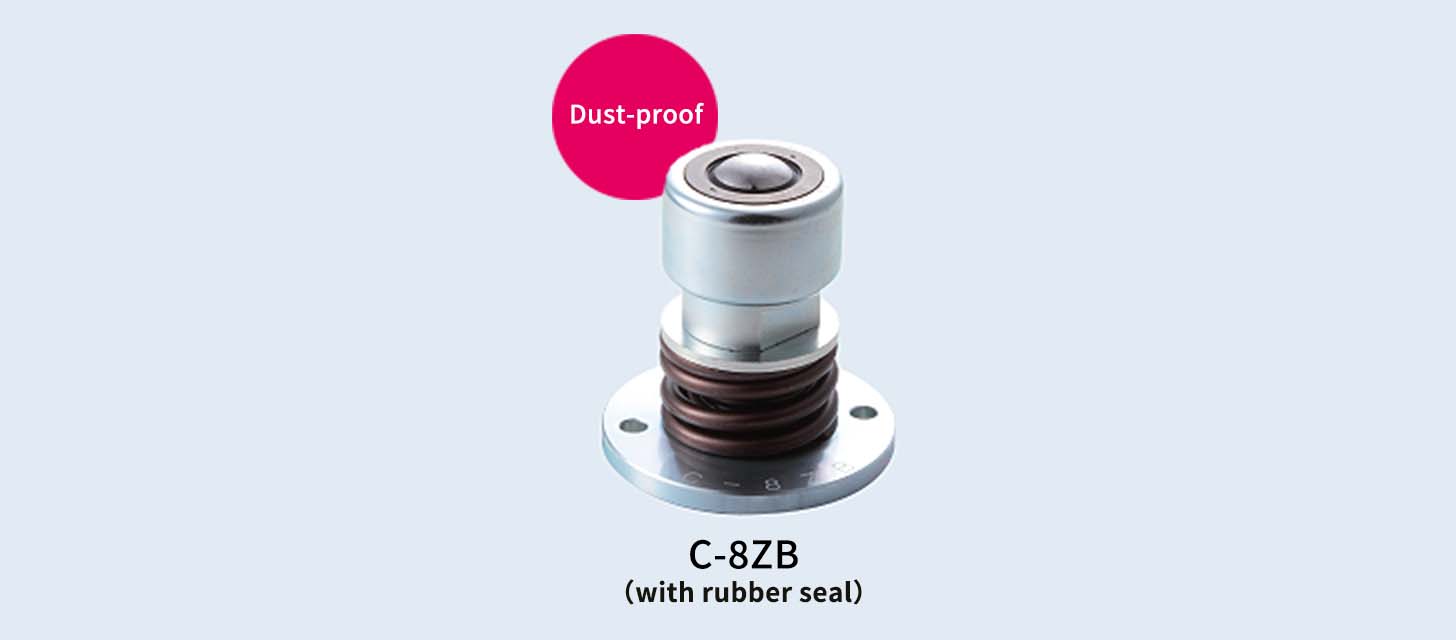

Z-type
Spring type cutting-machined products.
The load becomes uniform by means of the spring, preventing uneven load caused by the shape of the load.
（Unit：mm）
| Model | Allowable load | Mounting strength | Max. strength | Main ball | Small ball | Body | Weight | A | B | C | D | E | F | G | H | I | Data Download （DXF/PDF） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C-6Z ［※Discontinued in March 2023］ ［※Successor models：C-6ZV2］ | 50kg | 490N(50kgf) | 686N(70kgf) | Steel | Steel | Steel | 303g | ∅32 | 47 | ∅60 | 4 | 50 | 24 | 6 | 2-∅6.5 | 3/4″ Ball(∅19.05) | DXFPDF |
| C-8Z ［※Discontinued in March 2023］ ［※Successor models：C-8ZV2］ | 80kg | 784N(80kgf) | 1029N(105kgf) | Steel | Steel | Steel | 646g | ∅42 | 55 | ∅70 | 7.4 | 72 | 30 | 6 | 2-∅6.5 | 3/4″ Ball(∅19.05) | DXF PDF |
（Unit：mm）
（Unit：mm）
（Unit：mm）
（Unit：mm）
（Unit：mm）
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.
